Parts for stubble cultivation

Integral heat treatment, guarantee of long life

Cultivator sweeps are becoming increasingly more popular as they bury the crop residue at an average depth. Manufacturers of farm equipment are making increasingly more farming equipment with spare parts that last much longer, especially with tungsten carbide. These cultivator sweep tip profiles are becoming wider and tungsten carbide is used so that the service life of the cultivator sweep is longer.

15055 B80 CP 2A 3P

Download catalogue

15055 - 15056 - 15057 -2823

Ref.	O. Ref.	C	Grs.	B	A	B	C	E	M	₴
15055-A 80 HRS	34060850	12	1500	500	80	243		1199A	1285A
15055-B 120 HRS	34060851	12	2300	300	120			1199A	1285A
15056-A D HRS	34060857	10	1700	300	172,5		60	HEX	M12
15056-A I HRS	34060856	10	1700	300	172,5		60	HEX	M12
15056-A D CA1 HRS	34060857	10	1700	300	172,5		60/60	HEX	M12
15056-A I CA1 HRS	34060856	10	1700	300	172,5		60/60	HEX	M12
15056-B D HRS	34060855	10	1250	400	101		60	HEX	M12
15056-B I HRS	34060854	10	1250	400	101		60	HEX	M12
15056-B D CA1 HRS	34060855	10	1250	400	101		60/60	HEX	M12
15056-B I CA1 HRS	34060854	10	1250	400	101		60/60	HEX	M12
15057-A 80 D HRS	34060859	8	1950	300	80	410	57	1199A	1285A
15057-A 80 I HRS	34060858	8	1950	300	80	410	57	1199A	1285A
15057-A 80 CENTRAL		8	1385	200	80	305		1199A	M12
15057-B 100 D HRS	34060853	8	2700	300	100	410	57	1199A	1285A
15057-B 100 I HRS	34060852	8	2700	300	100	410	57	1199A	1285A
15058-A 80 D HRS	34060863	8	1200	400	80	260	57	1199A	1285A
15058-A 80 I HRS	34060862	8	1200	400	80	260	57	1199A	1285A

I Left
D Right
F Articles manufactured upon order.

15056-A: 370 mm working width 2 wings and tine

15056-B: 240 mm working width 2 wings and tine

HEX: DIN 931 hexagonal screw and DIN 934 nut, ref. 1199H1260A without Bellota markings

DURATOP: Point with tungsten carbide

Fits with 2823 tine. <> [[T:779]]

15056 A/B CA1: with four holes.

15058 CA1: 1 mounting hole

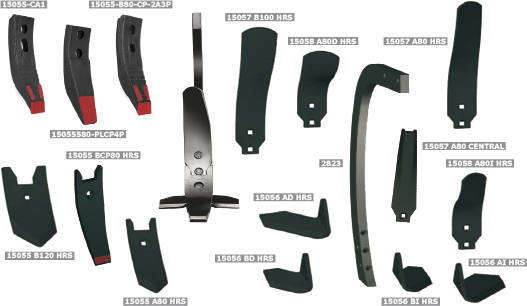

HORSCH

15055 - 15056 - 15057 - 15058 C2A

Ref.	C	Grs.	B	A	B	C	E	M	₴
15055-C2A HRS	12	1750	500	80	250	57	1199A	1285A
15057-C2A CENTRAL	8	1230	200	80	258		1199A	M12
15057-A 80 D C2A HRS	8	1300	300	80	380		1199A	1285A
15057-A 80 I C2A HRS	8	1300	300	80	380		1199A	1285A
15058-A 80 D C2A HRS	8	800	400	80	235		1199A	1285A
15058-A 80 I C2A HRS	8	800	400	80	235		1199A	1285A
15056 C D	10	2450	200	221		60	HEX	M12
15056 C I	10	2450	200	221		60	HEX	M12
15056 C D AP2	10	2600	200	221		60	HEX	M12
15056 C I AP2	10	2600	200	221		60	HEX	M12

I Left
D Right
F Articles manufactured upon order.

15056-C: 465 mm working width 2 wings and tine

DURATOP: Point with tungsten carbide

AP2 DURATOP: High resistance to wear Hardfacing material.

Fits with 2823 tine. <> [[T:779]]

HEX: DIN 931 hexagonal screw and DIN 934 nut, ref. 1199H1260A without Bellota markings

ADAPTABLE TO HORSCH

15083

Ref.	O. Ref.	C	Grs.	B	A	B	E	M	₴
15083-80X12	506064	12	1900	400	80	280	1199A	M12
15083-80X14	506065	14	2200	300	80	280	1199A	M12
15083-100X12	506014	12	2400	250	100	280	1199A	M12

F Articles manufactured upon order.

15083-80X12

15083-80X14

15083-100X12

Lemken Smaragd

Ref.	O. Ref.	C	Grs.	A	B	C	B	E	M	₴
1595 10 CA	4679105	10	2350	150	194	40/70	125	1199A	M12
1597-A 8 CA	3374395	8	1850	100	295		400	1199A	M12
1597-B 8 CA	3374394	8	1850	100	290		250	1199A	M12
1598 8 D CA	3374398	8	2400	110	300		300	1199A	M12
1598 8 I CA	3374399	8	2400	110	300		300	1199A	M12
1515 10 CA	3374388	10	1740	120	235		500	1199A	M12
1515 12 CA	3374392	12	2050	120	235		500	1199A	M12
1515 12 CA AP2 DURATOP	3374392	12	2250	120	235		450	1199A	M12
1515 12 B CA	3374386	12	1550	80	235		500	1199A	M12
1596 10 D CA	3374416	10	2100	349	130	70	450	1199G	M12
1596 10 I CA	3374417	10	2100	349	130	70	450	1199G	M12
1516 10 D CA	3374418	10	2035	349	130	70	400	1199G	M12
1516 10 I CA	3374419	10	2035	349	130	70	400	1199G	M12
1516 11 D CA	3374420	11	2635	381	130	70	370	1199G	M12
1516 11 D CA AP2 DURATOP	3374424	11	3000	380	130	70	300	1199G	M12
1516 11 I CA	3374421	11	2635	381	130	70	370	1199G	M12
1516 11 I CA AP2 DURATOP	3374425	11	3000	380	130	70	300	1199G	M12
1516B 10 D CA	3374428	10	1635	249	130	70	400	1199G	M12
1516B 10 I CA	3374429	10	1635	249	130	70	400	1199G	M12
1517 CA	3374356	5	780	256	174		300	1199A	M10

I Left
D Right
F Articles manufactured upon order.

Fits with 2446 tine. <> [[T:153]]

AP2 DURATOP: High resistance to wear Hardfacing material.

LEMKEN SMARAG

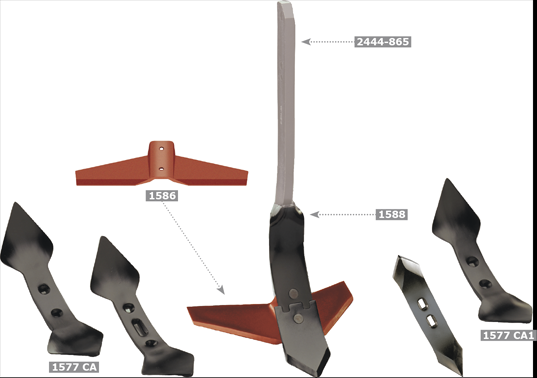

1586-1587-1588

Ref.	C	Grs.	R	A	B	C	D	E	M	B	₴
1586-A 8 CA	8	4500	21º	480	300	70	128	1199A	M12	70
1586-A 8 CA2	8	4500	21º	480	300	45-75	128	1199A	M14	70
1586-A 8 CA3	8	4500	21º	480	300	45-75	128	1199A	M12	70
1586-A 12 CA	12	6900	21º	480	300	70	128	1199A	M12	60
1586-A 12 CA1	12	6900	21º	480	300	70	128	1199A	M14	60
1586-A 12 CA2	12	6900	21º	480	300	45-75	128	1199A	M14	60
1586-A 12 CA 2 10"	12	4500	21º	10" (254)	300	45-75	128	1199A	M14	125
1586-A 12 CA3	12	6900	21º	480	300	45-75	128	1199A	M12	60
1586-B 8 CA	8	4500	15º	480	300	70	128	1199A	M12	70
1586-B 8 CA3	8	4500	15º	480	300	45-75	128	1199A	M12	70
1586-B 12 CA1	12	6900	15º	480	300	70	128	1199A	M14	60
1587-A 10 CA	10	1650	15º	120	215			1199A	M12	500
1587-A 10 CA1	10	1650	15º	120	215			1199A	M14	500
1587-B 10 CA	10	1650	15º	120	215			1199A	M12	500
1587-B 12 CA	12	1980	15º	120	215			1199A	M12	350
1587-B 12 CA1	12	1980	15º	120	215			1199A	M14	350
1588 10 CA	10	2200		100	290			1199A	M12	300
1588 10 CA1	10	2200		100	290			1199A	M14	300
